產品描述

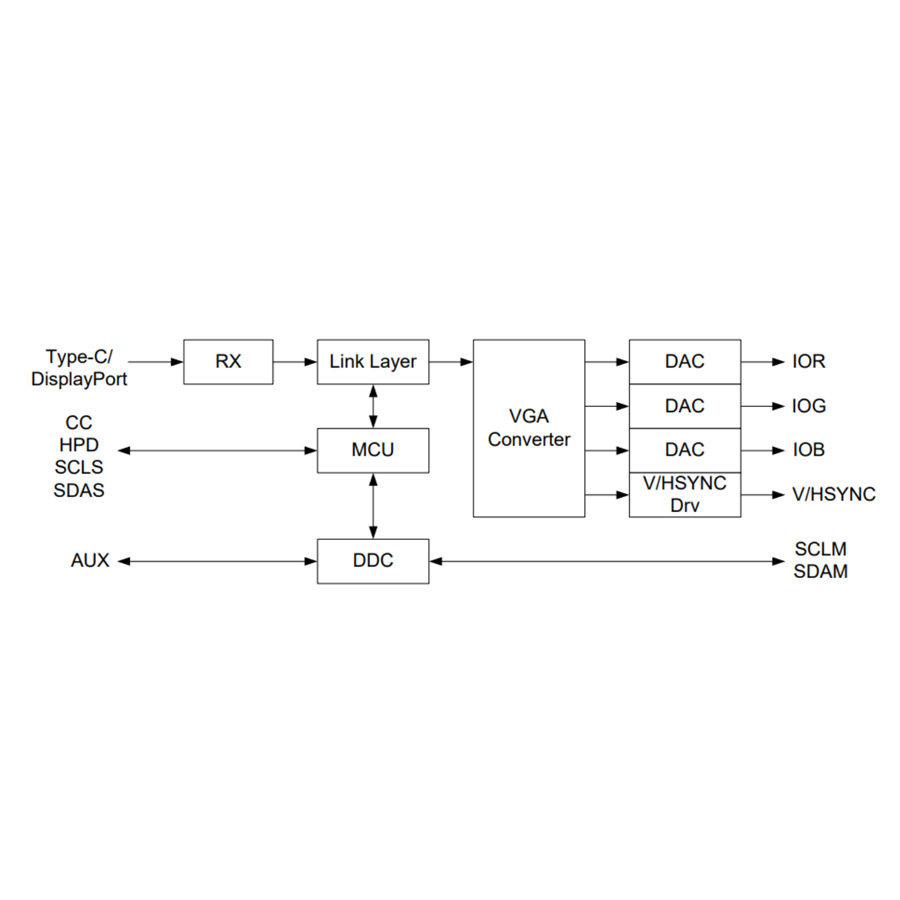

The NCS8823E is a low-power, the DisplayPort signal to VGA translator through the USB Type-C connector. It is suitable for USB Type-C to VGA converter, adapter, docking device. This device combines a USB Type-C based DisplayPort receiver and a VGA transmitter. The NCS8823E can work without any external configuration or setup. The NCS8823E supports two DisplayPort Main Link Lanes input with data rate running at 1.62Gb/s, 2.7Gb/s, can accept RGB digital formats in either 18-bit 6:6:6 or24-bit 8:8:8. The VGA output can support up to WUXGA (1920*1200@RB) @ 60Hz.
產品參數
• VGA Output
• Max resolution up to WUXGA (1920*1200@RB)@60Hz
• Triple 8 Bit DAC(digital to analog converter) with clock up to 166MHz
• VESA VSIS v1r2 compliant
• R/G/B swap
• USB TYPE-C
• USB Type-C Cable and Connector Specification Revision 1.3 compliant
• USB Power Delivery Specification Rev3.0 compliant
• DisplayPort Alt Mode on USB Type-C Standard Version 1.0a compliant
• Support 2 Main Link Lanes at either1.62Gbps (RBR) or 2.7Gbps (HBR) link rate
• Clock
• Internal oscillator without any additional external crystal
• Embedded MCU
• Support I2C Master and Slave up to 400 KHz.
• 5V tolerance DDC I/Os
• Power
• 5V power supply
• Power consumption 1920x1080 24bit @ 60Hz ~ TBDmW Deep-sleep mode power <1mW
• Package
• QFN-32 (4mm x 4mm) package
• RoHS Compliant
